Lightweight, powerful, and fast electric wire hoist with upper and lower limit switches. The lower hook is equipped with a swivel. The hoist is equipped with a double brake system. The control cable is 7 m and the power cable 5 m long. Also available with a longer control cable.
Optional wireless remote control:
- range 50 m (unobstructed visibility)
- functions: lift, lower and emergency stop
- IP65
- operating temperature -10 - (+)70°C
- size 190 x 70 x 50 mm
- 4 x AA batteries
- Product code: VAINOSHKAUKO
- Features: IP54
- Material: Steel
- Marking: CE-marked
- Finish: Painted, blue
DIMENSIONS
| Product | Control cable m | Electric cable m | Body width mm | Body depth mm | Body + chain min height mm |
| VAINOSH230 | 7 | 5 | 240 | 180 | 660 |
| VAINOSH300 | 7 | 5 | 240 | 210 | 670 |
| VAINOSH500 | 7 | 5 | 240 |
SPARE PART STEEL WIRE ROPES
| Wire rope dim. | Lenghtm | End fitting | Wire rope product code | Suitable for hoist | |
| 5 mm | 30 | Thimble + preventer | VAINOSH230VA | VAINOSH230 |  |
| 5 mm | 60 | Thimble + preventer | VAINOSH300VA | VAINOSH300 |  |
| 7 mm | 30 | Thimble + preventer | VAINOSH500VA | VAINOSH500 | |

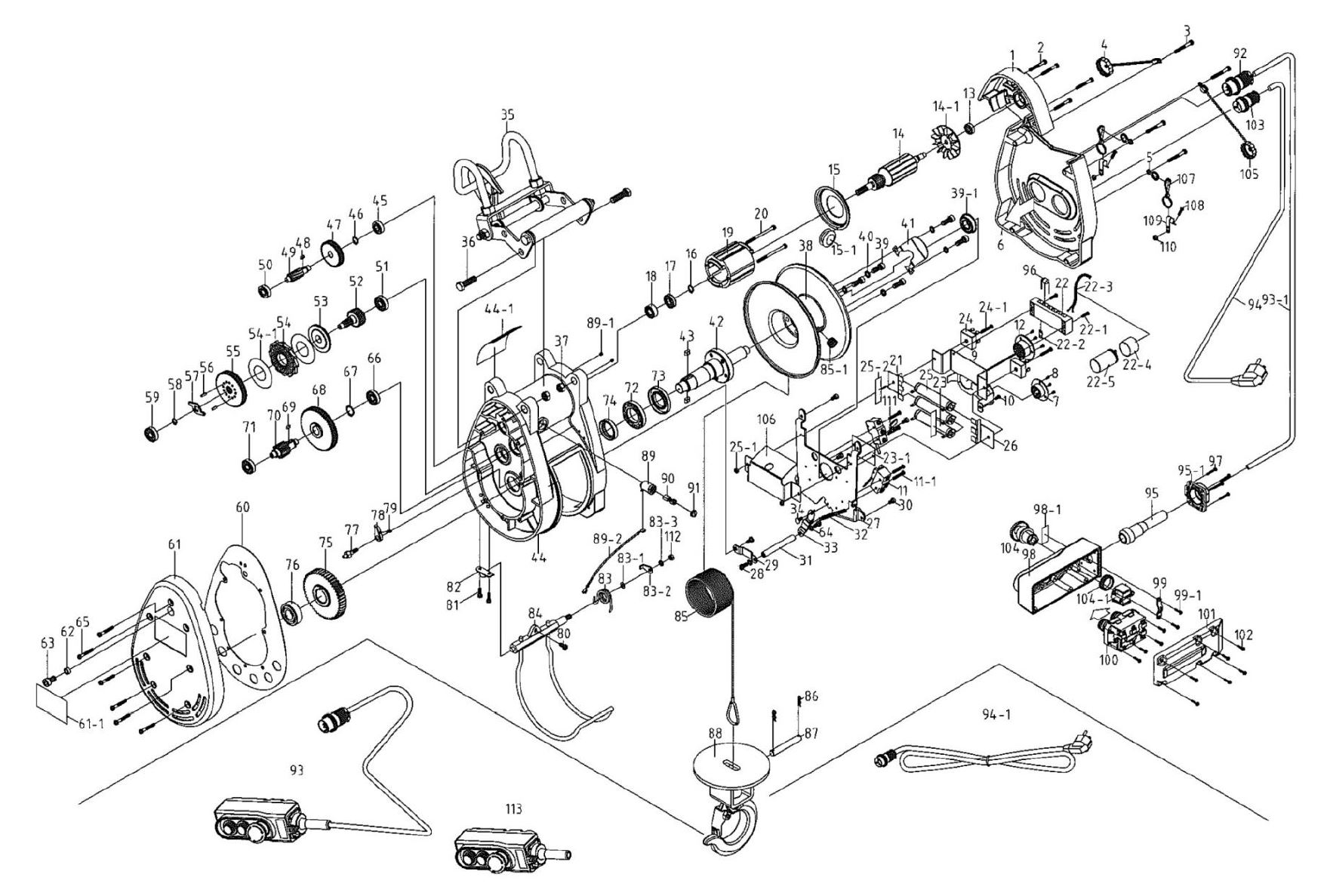

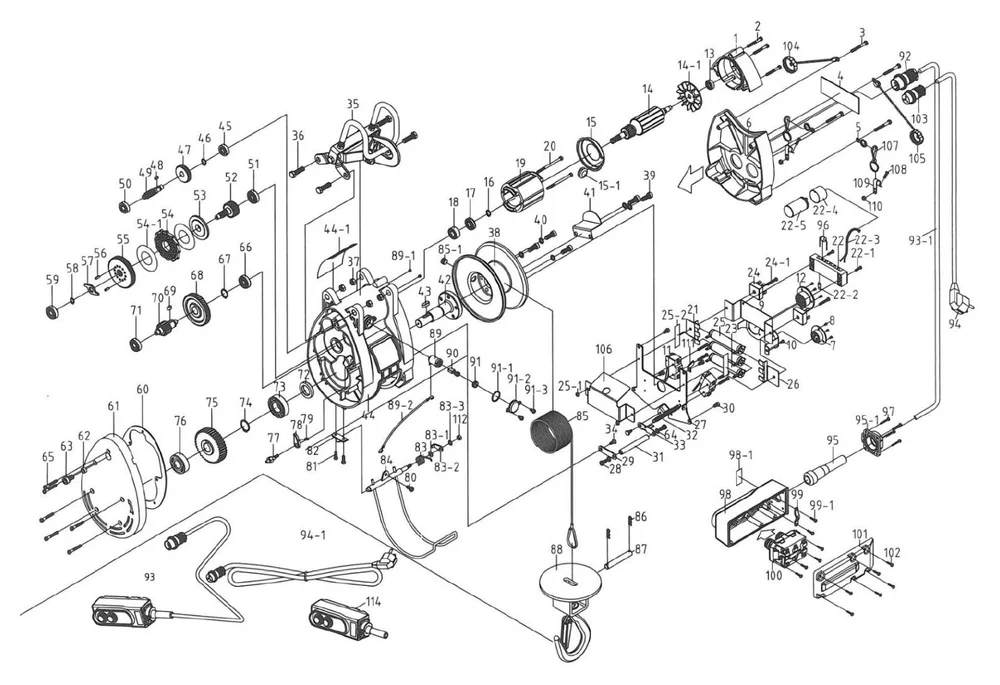

SPARE PARTS
| Spare part (product code) | Description | Suitable for hoist (product code/-s) | |
| KAPULA1 | Pendant control for VAINOSH230/-300/-500 | VAINOSH230, VAINOSH300, VAINOSH500 |  |
| VAINOSHKJOHT | Control cable 7 m, assembly | Incl. cable and pendant control | Plug in the other end | VAINOSH230, VAINOSH300, VAINOSH500 |  |
| VAINOSHKAAP | Control cable extension, length 10 m | Plugs in both ends | VAINOSH230, VAINOSH300, VAINOSH500 |  |
| VAINOSHVJOHT | Power cable 5 m | Plugs in both ends, different type | VAINOSH230, VAINOSH300, VAINOSH500 |  |
| VAINOSH230AKO | Bottom hook set | Incl. fixing pins | VAINOSH230 |  |
| VAINOSH230YKO | Top hook set | VAINOSH230 |  |
| VAINOSH300AKO | Bottom hook set | Incl. fixing pins | VAINOSH300, VAINOSH500 | |
| VAINOSH300YKO | Top hook set | VAINOSH300, VAINOSH500 |  |
| VAINOSHKAUKO | Cordless remote control | VAINOSH230, VAINOSH300, VAINOSH500 |  |
| VAINOSH24 | Bridge type regulator | Part no. 24 | VAINOSH230, VAINOSH300, VAINOSH500 | |
| VAINOSH230PIST | Cable socket set | Part nos. 7 and 12, incl. fasteners | VAINOSH230, VAINOSH300, VAINOSH500 |
Also other spare parts available with a delivery time, ask our sales for more information
VAINOSH230
VAINOSH300
VAINOSH500
