For vertical lifting and turning of steel plates.
Suitable for standard steel materials with a surface hardness of up to 30 HRC.
- Material: Steel
- Marking: According to standard, CE-marked
- Finish: Painted, yellow
- Standard: EN 13155
- Note: Lifting pieces weight must be minimum of 20% of maximum WLL!
- Warning: Not to be heat-treated!
- Safety factor: 4:1

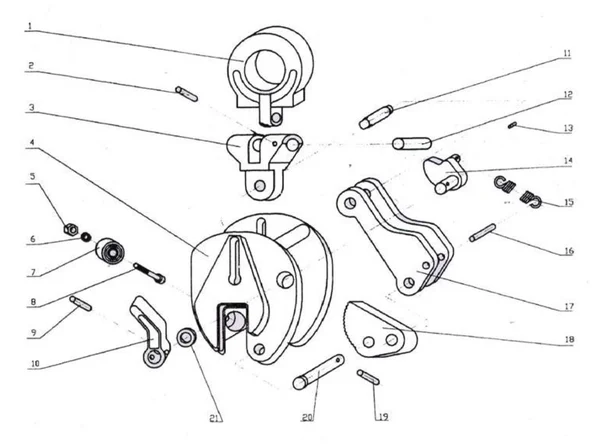

SPARE PARTS
| Spare part (product code) | Description | Suitable for clamp (product code) |
| LTABT05VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT08 |
| LTABT05VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT08 |
| LTABT05VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT08 |
| LTABT05VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT08 |
| LTABT05VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT08 |
| LTABT05VOS06 | Spare part set no. 6 | Function lever / Locking eccentric assy | Part nos. 9-10, 13-14, 21 | LTABT08 |
| LTABT05VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT08 |
| LTABT10VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT10 |
| LTABT10VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT10 |
| LTABT10VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT10 |
| LTABT10VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT10 |
| LTABT10VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT10 |
| LTABT10VOS06 | Spare part set no. 6 | Function lever / Locking eccentric assy | Part nos. 9-10, 13-14, 21 | LTABT10 |
| LTABT10VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT10 |
| LTABT20VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT20 |
| LTABT20VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT20 |
| LTABT20VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT20 |
| LTABT20VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT20 |
| LTABT20VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT20 |
| LTABT20VOS06 | Spare part set no. 6 | Function lever / Locking eccentric assy | Part nos. 9-10, 13-14, 21 | LTABT20 |
| LTABT20VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT20 |
| LTABT30VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT30 |
| LTABT30VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT30 |
| LTABT30VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT30 |
| LTABT30VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT30 |
| LTABT30VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT30 |
| LTABT30VOS06 | Spare part set no. 6 | Function lever / Locking eccentric assy | Part nos. 9-10, 13-14, 21 | LTABT30 |
| LTABT30VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT30 |
| LTABT45VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT45 |
| LTABT45VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT45 |
| LTABT45VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT45 |
| LTABT45VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT45 |
| LTABT45VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT45 |
| LTABT45VOS06 | Spare part set no. 6 | Function lever / Locking eccentric assy | Part nos. 9-10, 13-14, 21 | LTABT45 |
| LTABT45VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT45 |
| LTABT80VOS01 | Spare part set no. 1 | Pivoting ring | Part no. 1 | LTABT80 |
| LTABT80VOS02 | Spare part set no. 2 | Connecting block, pin and roll pin | Part nos. 2, 3, 12 | LTABT80 |
| LTABT80VOS03 | Spare part set no. 3 | Round jaw, screw, washer and lock nut | Part nos. 5-8 | LTABT80 |
| LTABT80VOS04 | Spare part set no. 4 | Jaw pin and roll pin | Part nos. 19-20 | LTABT80 |
| LTABT80VOS05 | Spare part set no. 5 | Clamping jaw, connecting plate, connecting block pin and roll pin | Part nos. 11, 16, 17-18 | LTABT80 |
| LTABT80VOS06 | Spare part set no. 6 | Function lever / Locking eccentric assy | Part nos. 9-10, 13-14, 21 | LTABT80 |
| LTABT80VOS07 | Spare part set no. 7 | Pulling spring | Part no. 15 | LTABT80 |
Note: Suitable for lifting clamps manufactured after (2017-)2018.
Also other spare parts available with a delivery time, ask our sales for more information.
