Enables the use of a forklift as a crane. Three different lift angles and rapid attachment to forklift's forks. The location of the hook is adjustable between 740 - 3726 mm. Rotating latch hook as a standard.
- Material: Steel
- Marking: CE-marked
- Finish: Painted, yellow
- Note: Fork pocket size 65 x 180 mm
WORKING LOAD LIMITS

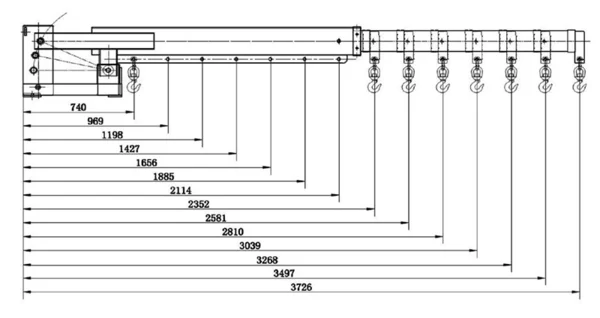

Jib angle: horizontal
| Length (mm) | 740 | 969 | 1198 | 1427 | 1656 | 1885 | 2114 | 2352 | 2581 | 2810 | 3039 | 3268 | 3497 | 3726 |
| WLL (kg) | 3000 | 2291 | 1853 | 1556 | 1341 | 1178 | 1050 | 944 | 860 | 790 | 730 | 679 | 635 | 596 |

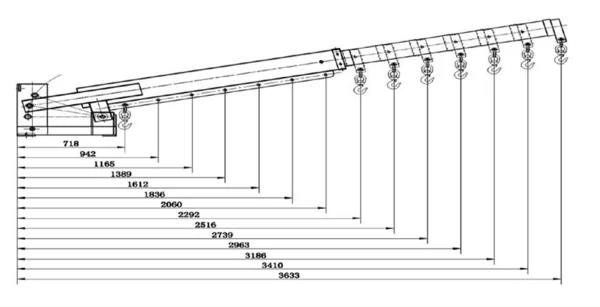

Jib angle: 13°
| Length (mm) | 718 | 942 | 1165 | 1389 | 1612 | 1836 | 2060 | 2292 | 2516 | 2739 | 2963 | 3186 | 3410 | 3633 |
| WLL (kg) | 3000 | 2357 | 1906 | 1598 | 1377 | 1209 | 1078 | 969 | 882 | 811 | 749,3 | 697 | 651 | 611 |

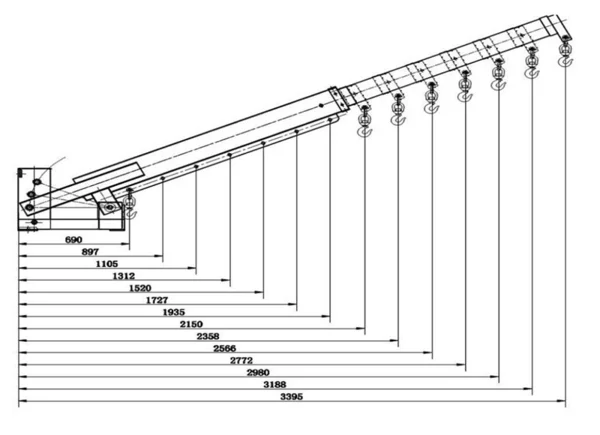

Jib angle: 26°
| Length (mm) | 690 | 897 | 1105 | 1312 | 1520 | 1727 | 1935 | 2150 | 2358 | 2566 | 2772 | 2980 | 3188 | 3395 |
| WLL (kg) | 3000 | 2475 | 2009 | 1692 | 1460 | 1285 | 1147 | 1032 | 941 | 865 | 800,8 | 745 | 696 | 654 |

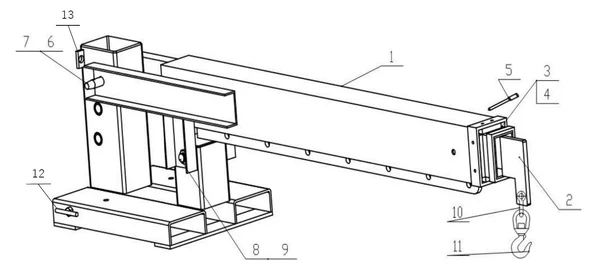

SPARE PARTS
| Spare part (product code) | Description | Suitable for crane (product code) |
| TRUKPU3000TP | Fork pocket T-bolt | 1 pc | Part no. 12 | TRUKPU3000 |
| TRUKPU3000SS | Telescopic tube adjustment rod | Incl. R-clip | Part no. 5 | TRUKPU3000 |
| SALKL10 | Swivel latch hook 3,15 t / grade 80 | Part no. 11 | TRUKPU3000 |
| SAK32SLBP | Shackle 3,25 t / 19 mm | Dee type / with locking | Part no. 10 | TRUKPU3000 |
| Also other spare parts available with a delivery time, ask our sales for more information |
