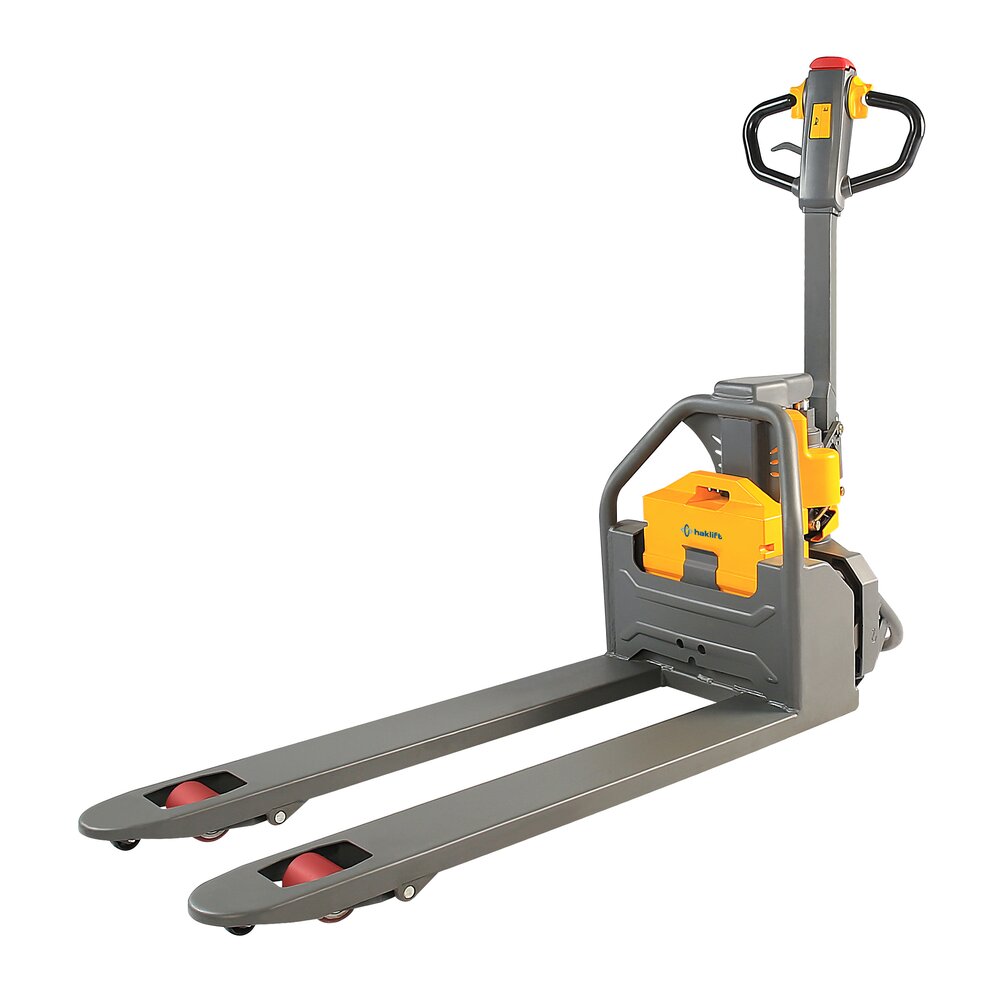

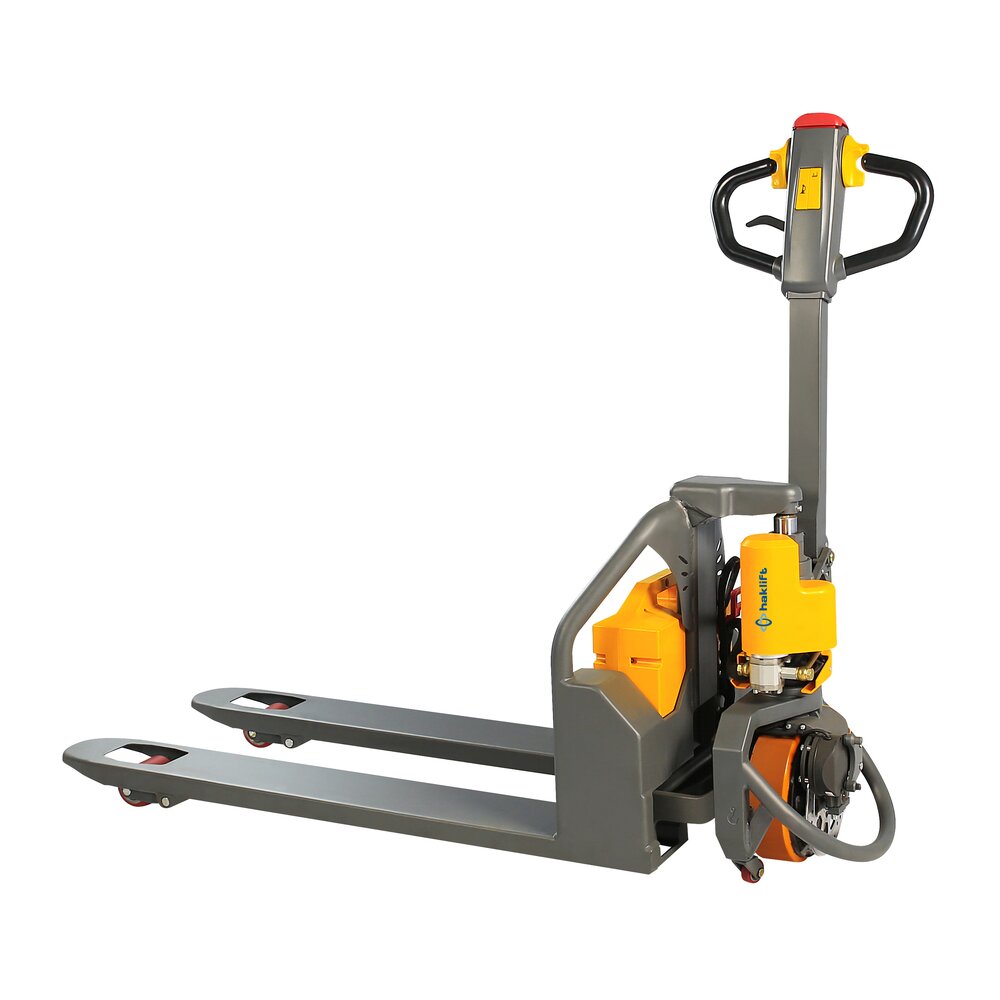

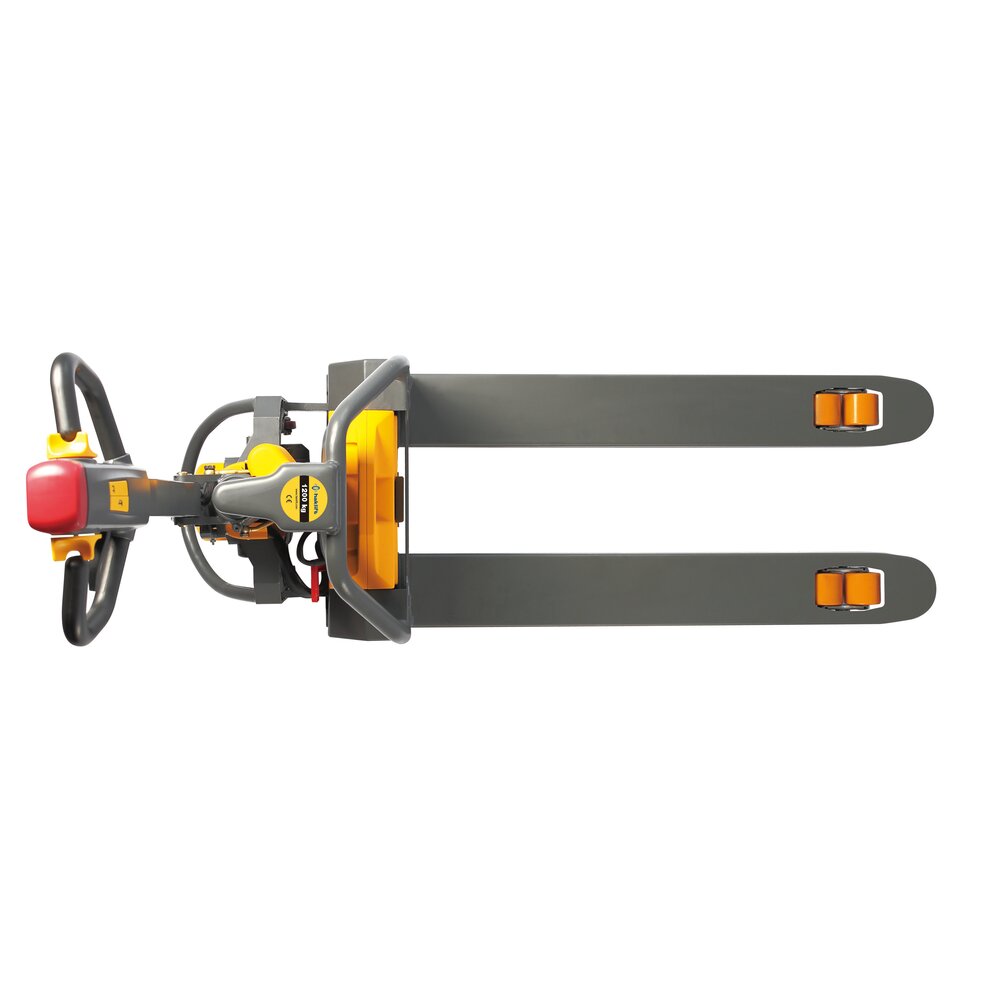

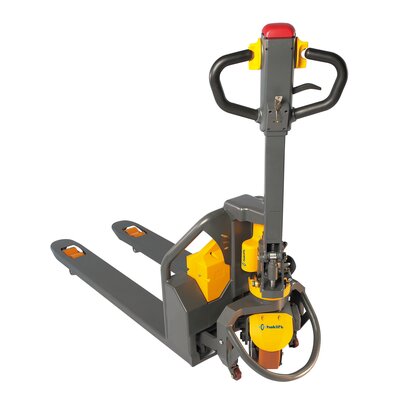

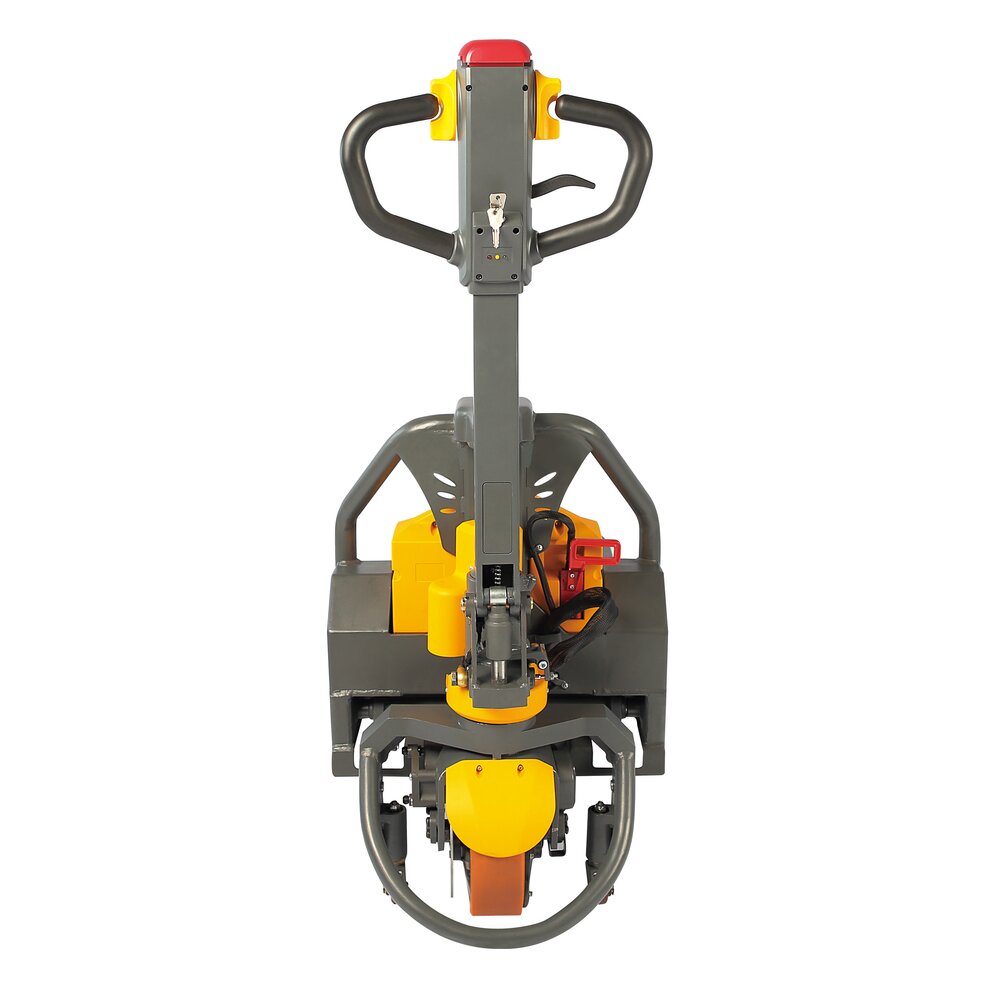

Easy-to-use, lightweight, durable and compact size electric pallet truck. Equipped with electric lifting and manual lowering functions. Due to the stepless driving motor and small turning radius, the pallet truck is easy to use in narrow spaces and corridors. 20 Ah lithium battery ensures 3-6 hours of continuous operating time depending on the load. Separate charger enables charging of an additional battery during the use of the electric pallet truck, which makes it possible to use the device continuously the necessary time. Charging time of the battery is only 3 hours and the interchange can be executed in 10 seconds. Carbon brushless motor ensures carefree use and fast maintenance.

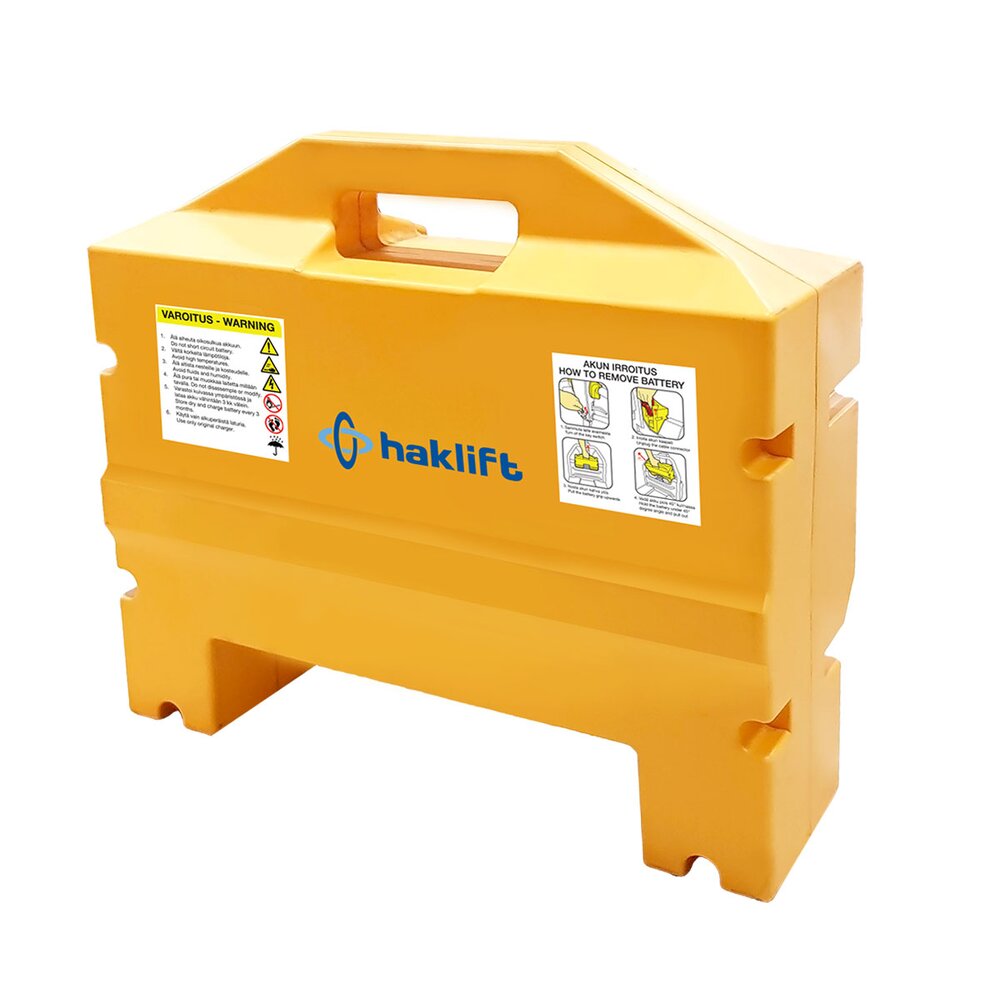

Product code of extra battery: HAVA1200ELEAKKU
Content of the delivery:
- Electric pallet truck
- 1 pcs battery 48V / 20 Ah
- 1 pcs charger
- Material: Steel
- Marking: CE-marked
- Temperature range: -10°C - (+)40°C

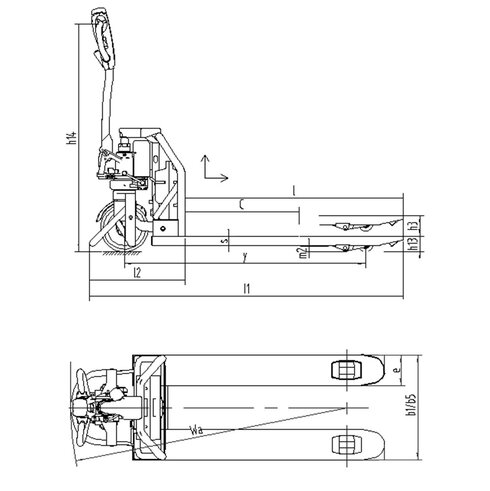

DIMENSIONS
| Load center distance | C (mm) | 600 |
| Fork height | h13(mm) | 80 |
| Axle distance | Y(mm) | 1269 |
| Wheels | PU | |
| Wheel diameter front | Ø (mm) | 250 |
| Wheel diameter rear | Ø (mm) | 80 |
| Pushing handle min. and max. heights | h14 (mm) | 635/1200 |
| Overall length | l1 (mm) |
